If the "Virtual master" is selected for the master encoder, the dialog box below opens up under "Options". Click "Start" to start the engagement and click "Stop" and "Halt" correspondingly to stop it.

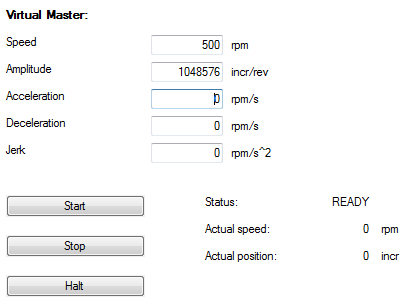

Bild: "Virtual master" dialog box
|
NOTE: The virtual master must be activated by clicking the "Start" button, and remains active for operation of a synchronized movement. |
