Motor identification
Motor identification wizard:
When the motor data have been entered in the dialog box, identification is started by clicking the "Start identification" button. A safety notice must be confirmed with a tick (check mark).
Motor identification PS motor
- Enter motor data
- Click "Identification" button
- Current controller tuning: The current controller is automatically optimized.
Motor identification AS motor
- Current controller tuning
- Measurement of: P 0470 MOT_RST stator resistance, P 0476 MOT_Rrot rotor resistance, P 0471 MOT_LSig leakage inductance
- Max. effective current Idmax P 0474 MOT_LmagIdNom
- Calculation of operating point: P 0462 MOT_FLUXNom nominal flux, P 0340 CON_FM_Imag magnetizing current
- Calculation of: current, speed and position control parameters
- Click the "Start calculation" button to determine the rotor resistance P 0476 MOT_Rrot and leakage inductance P 0471 MOT_LSig.
- Measurement of the saturation characteristic (table values of the stator inductance P 0472_NMOT_LSigDiff).
Measurements are taken up to four times rated current, provided the power stage current permits it at standstill. If it does not, the measurement is taken with a correspondingly lower current.
- P 0340 CON_FM_Imag magnetizing current

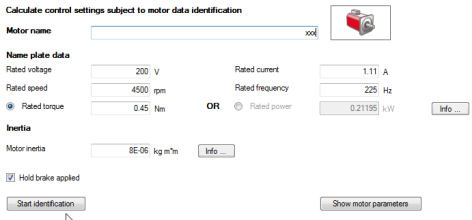

Bild: "Motor identification" dialog box
