There are a number of way of displaying an error message. An error message is indicated on the display of the drive controller (display D1/D2) or via the DriveManager 5. It provides a user-friendly readout in the "Device status" window.
The controller display indicates the rear of the device states and possible error messages. Two 7-segment displays are available for the purpose. To display an error number and an error, "ER" for Error flashes, then the error number, and then the number of the error location.
Example: ER-16-01 (1) Max. speed difference detected
| Display readout | Function |
|---|---|
|
Attention – error message |
|
Errors marked with a dot on the display (D1/D2) can only be reset when the cause of the fault has been eliminated. |
|
Maximum overspeed detected |
|
Speed tracking error above threshold value |
Tabelle: Error display

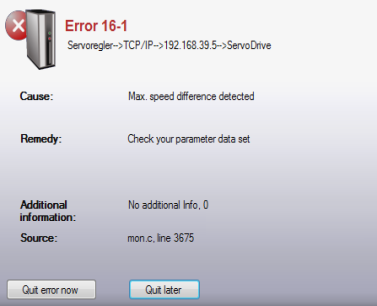

Display window in DriveManager 5
Bild: Displayed error
